Expansion Shell Rock Bolts: Shell, Bar and Borehole Checks Before Ordering

Ordering expansion shell anchor rods requires more than just the diameter, length, and quantity of steel bars. The shell must match the specified steel bar connections and drilling conditions, and the quotation must clearly include which components.

This is important when replacing existing bolts, purchasing shells separately, or comparing new suppliers with approved components. Components with similar appearances are not sufficient to establish compatibility.

Before requesting a quotation, prepare product drawings, project requirements, and supply list. The following checks can help buyers ask the right questions without turning purchasing decisions into unsupported engineering assumptions.

Are you purchasing shells, rods, or complete components?

The expansion shell anchor uses a mechanical expansion mechanism to join the wellbore wall. It is not the same product as the water expandable anchor rod. Use designated product names, drawings, or part references to avoid confusion between the two.

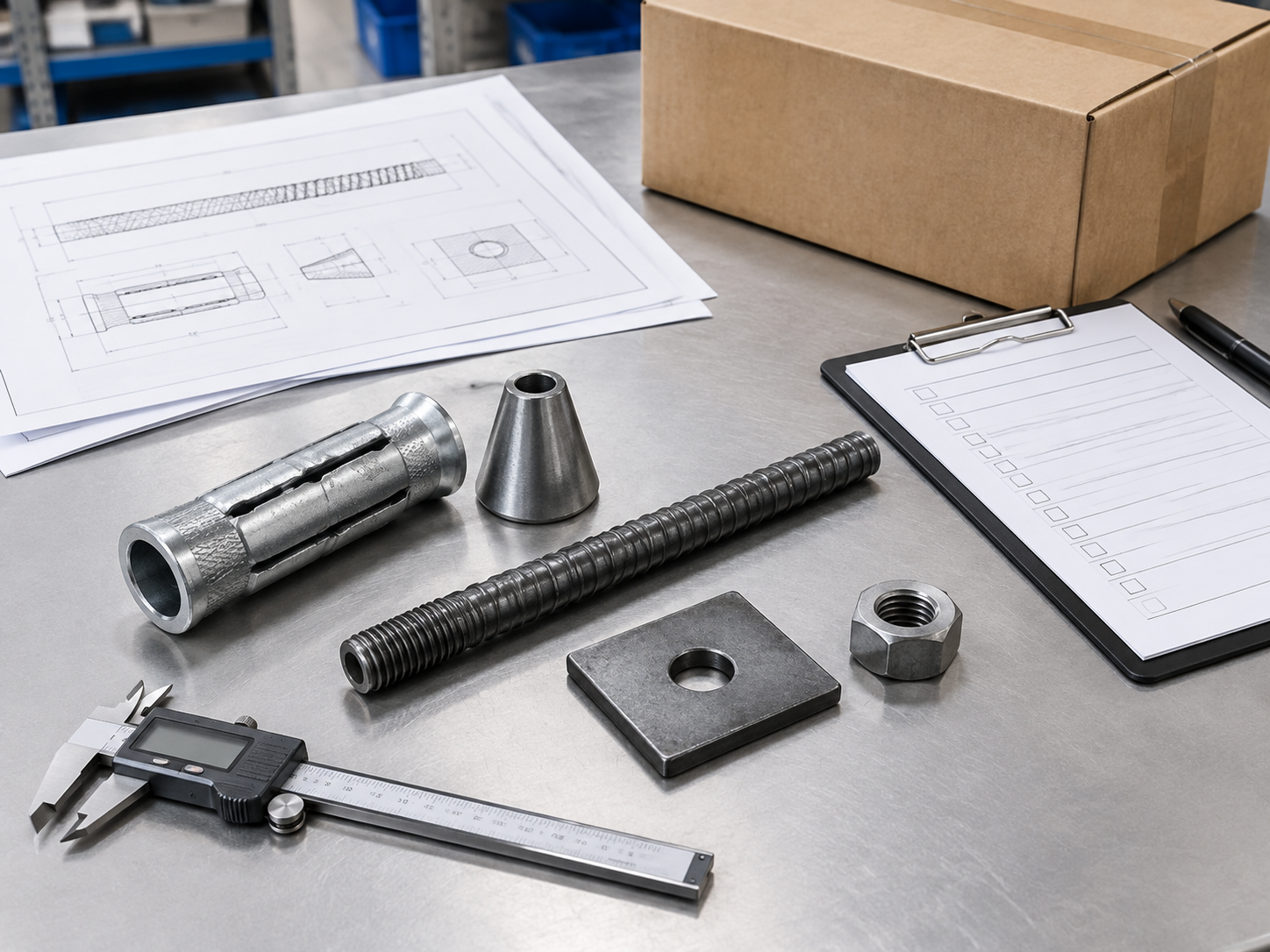

Require suppliers to specify the content covered by the quotation:

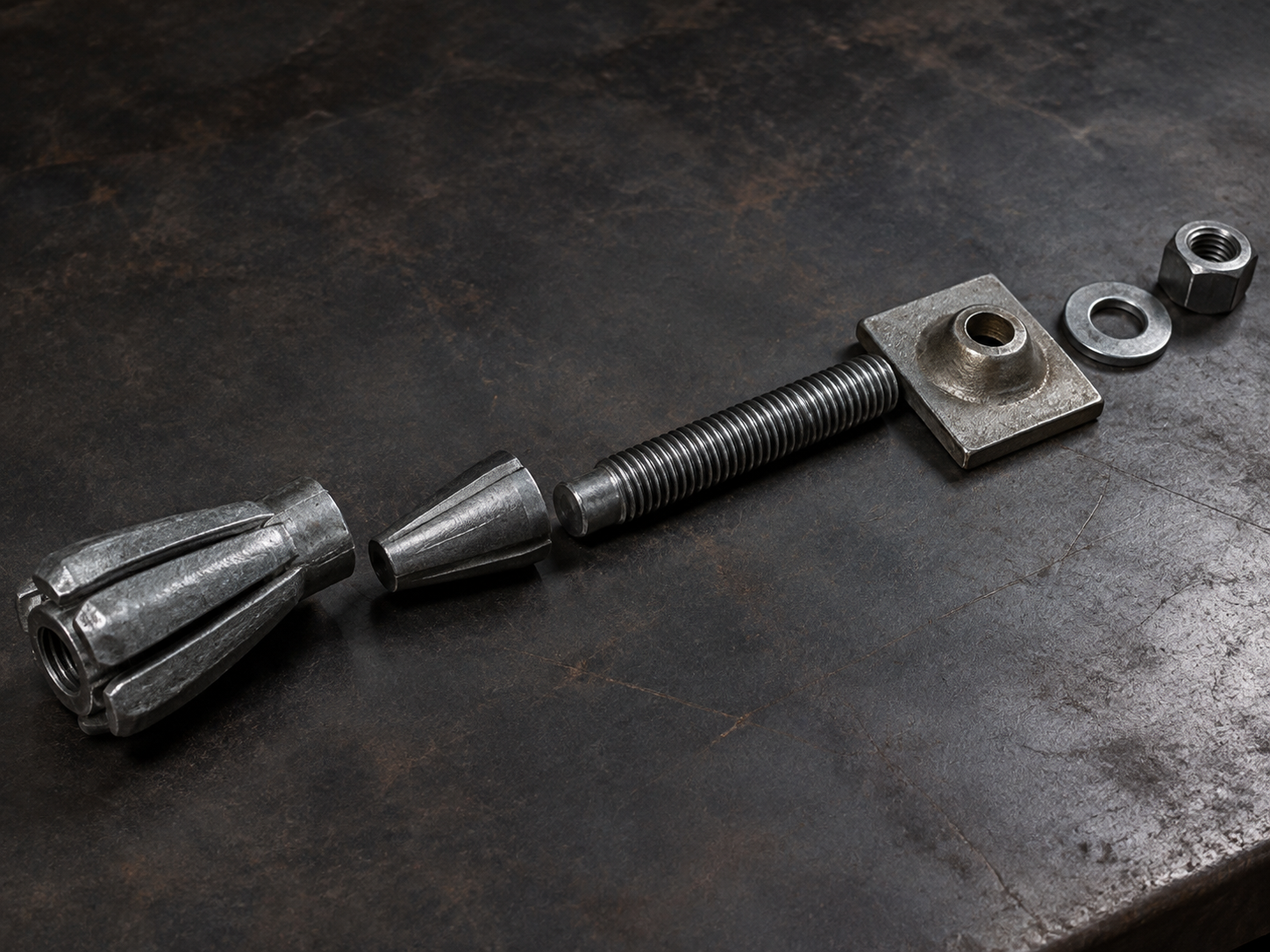

• Expansion shell and its supporting expansion components.
• Anchor rods or bolts, including designated end connections.
• Assemble the required bearing plates, nuts, and washers.
• Any other accessories specified for the project.

If the inquiry only involves the casing, please confirm the existing rods and mating components. If it covers complete components, please request a itemized list of components. The term 'complete anchor system' should not allow any party to guess what will happen.

Does the expansion shell match the rod?

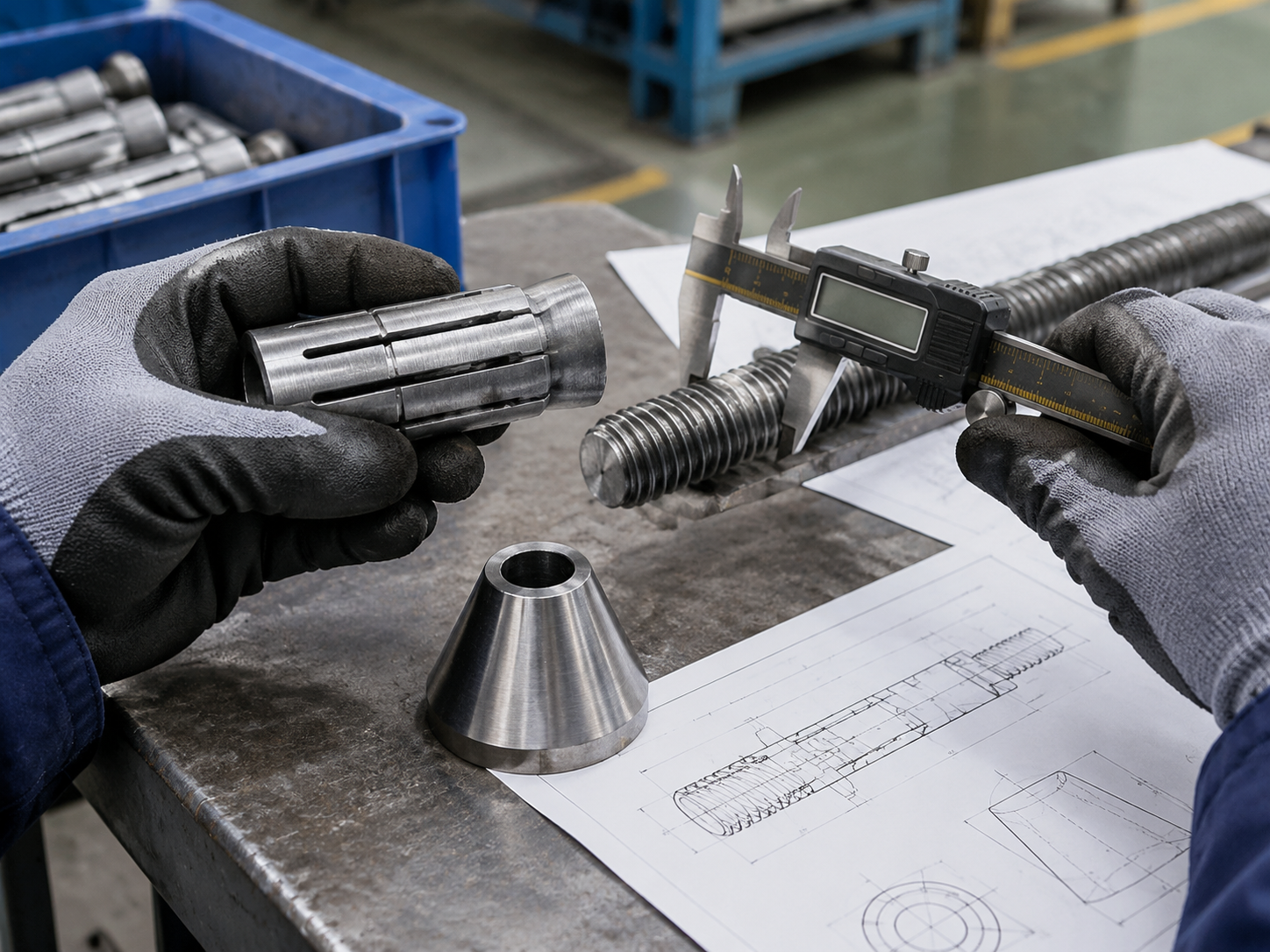

The nominal steel bar diameter cannot fully describe the connection. When comparing the mechanical anchor expansion shell with existing components, relevant drawings and part references should be exchanged instead of relying solely on photos.

The connection review should determine:

• Reference for assembly of rods and shells, including drawing revisions.
• Thread form, nominal size, pitch, and tolerance (if applicable).
• Coordinate the assembly arrangement of expansion components and records.
• Reinforcement length, threaded cross-section, and specified arrangement of plates and nuts.
• The materials and protective finishes required for the project.

If the replacement parts are different from the original drawings, please ask the supplier to list the differences for technical review. Don't assume that a component is an acceptable substitute just because it can be screwed onto a rod.

For existing parts without drawings, photos and label samples can help identify them. Before confirming the replacement, inquire about any additional measurements or documents required.

What drilling information does the supplier need?

The connection between the shell and the rod is only a part of the inspection. The proposed components also need to be reviewed based on the drilling and ground conditions of the project.

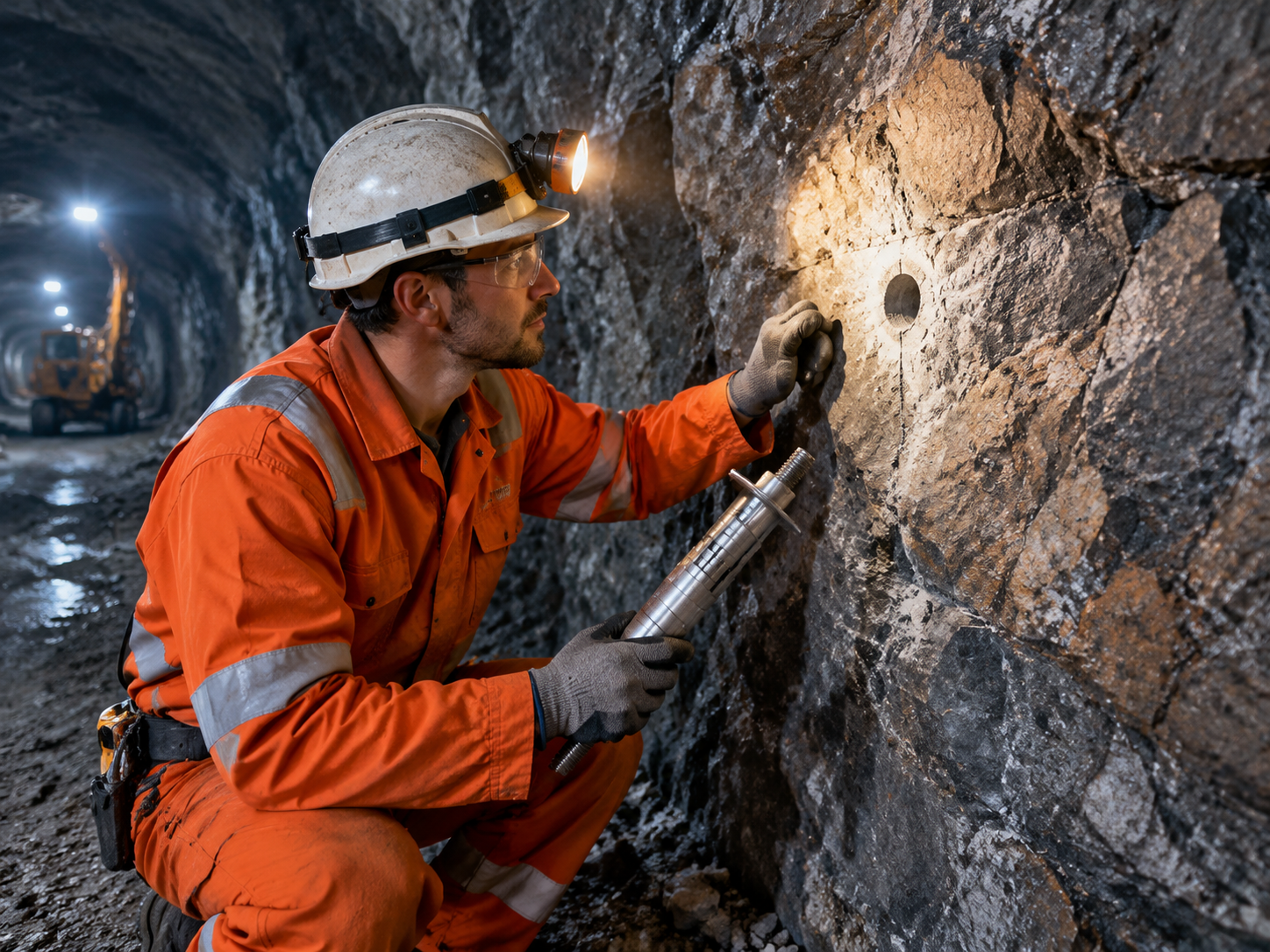

Provide the aperture and depth specified in the project, available drilling information, and relevant ground condition information provided by the responsible engineer. Determine whether the provided dimensions are design requirements, drill bit dimensions, or actual hole measurements.

These descriptions should not be considered interchangeable. The size of the drill bit itself cannot record the condition of the completed borehole.

Request the expansion shell anchor supplier to determine the allowable drilling range and other installation conditions for the proposed model. Any discrepancies between these requirements and project information should be resolved by the responsible technical party before ordering.

If the inquiry involves replacement, please include previous product references and any available installation records. Describe the issue in the report, rather than asking the supplier to infer the cause of the problem from the photos.

What installation requirements must be confirmed?

Request installation instructions for the provided components, rather than a general guide for mechanical anchor rods.

Confirm which equipment, tools, and entry conditions are required in the instruction manual. Inquire about how to activate the shell, how to check the components, and what installation records are required for the project. Any set torque, tension, or acceptance criteria must come from applicable product documents and project requirements; It should not borrow from another model.

It is also necessary to determine whether the project only requires mechanical anchoring or includes subsequent grouting, resin encapsulation, or other specified operations. Mechanical anchoring itself cannot prove that all support and protection requirements have been met.

Different anchor systems combine these operations in different ways. Do not transfer the installation sequence, performance requirements, or equipment requirements of hybrid or dynamic bolts to traditional expansion shell components.

Does the quotation cover the same components and evidence?

Lower unit prices may cover different supply ranges. Use a comparison table that separates technical identifiers, included components, and business terms.

Inquire about which files are included and which ones require separate agreements. Material certification, component testing, and installation assembly testing have solved different problems. Check the actual content covered by each report, rather than accepting general statements that the product has been 'tested'

If batch traceability is required, please inquire how the shipping markings are connected to the provided records. Confirm the minimum order quantity, production time, and delivery terms in the quotation, rather than assuming they are the same among suppliers.

What should you send in the RFQ?

A useful inquiry provides suppliers with sufficient information to identify products, review proposed combinations, and price within specified ranges. Use this starting template:

Topic: Inquiry for Expansion Shell Anchor Rod - Drawings and Supply Scope

We are purchasing expansion shell anchor rods for mining or tunnel engineering.

• Required supply: only shell/rod with shell/complete components, with component list attached.
• Product information: Existing manufacturer and part references, drawings and revisions, or detailed information on available photos and samples.
• Reinforcement and connection: required reinforcement length, thread details, and related mating component drawings.
• Drilling and project information: specified diameter and depth, available drilling or measurement records, and conditions provided by relevant engineers.
• Installation: Installation and inspection requirements for existing equipment and projects.
• Quality documents: required certificates, inspection records, test reports, and traceability arrangements.
• Business details: quantity, packaging requirements, delivery destination, and required delivery date.

Please identify the proposed components, any differences from our requirements, included and excluded components, available supporting documents, and any information that still needs to be confirmed.

When inquiring with CQ Rockbolt about expansion shell anchors, please send the drawings and project requirements along with the quantity. Before finalizing the order, it is required to confirm the proposed combination of shell and rod, as well as the available supply range.

Clear procurement specifications should enable both parties to answer three questions: which components are being supplied, what supports their suitability for specified conditions, and what needs to be confirmed before use.
