Resin Cartridges for Rock Bolts: Gel Time, Temperature and Storage Checks Before Ordering

The quotation for the resin cylinder may include the diameter, length, and set speed code. For mining or tunnel buyers, these details leave several unresolved questions: Does time apply to underground temperatures? Are the bolts and installation methods in compliance with regulations? What is the remaining usable shelf life when the goods arrive at the mine?

When comparing anchor resin barrels, suppliers are required to determine the exact product, explain its time conditions, and record its storage requirements. This guide lists the information to be collected before placing an order, in order to compare technical and commercial quotations on the same basis.

Confirm the arrangement of bullets and bolts

Starting from the product table. The confirmed quotation covers the pre packaged resin cylinder used for the specified anchor support method. Just mentioning 'resin grouting' does not determine whether the supplier refers to the cartridge or the material used for injection.

Next, provide bolt drawings, specified drilling diameters, and required anchorage lengths. Request the supplier to determine the proposed cartridge size and quantity for each bolt for technical review. For example, Minova's A-series file identifies specific bolt and drilling combinations; The advanced documentation also discusses installation conditions and the space between bolts and holes. These are the reasons for checking the entire layout rather than selecting ammunition cartridges based solely on diameter.

A useful procurement question is: "Which ink cartridge layout do you recommend for our drawings, and what additional information do you need to confirm

Don't assume that resin products are suitable for every type of anchor rod. Record the proposed application and any restrictions in the quotation.

Ask about the actual meaning of the gel time tag

Tags like 'Quick Settings' provide too little information to compare suppliers. Inquire about the specified time, definition, testing temperature, and testing method.

J-LOK information of JENNMAR distinguishes gel time, rotation time and holding time. It describes the gel time associated with the onset of hardening after mixing, the rotation time associated with mixing, and the holding time associated with anchoring after mixing. These terms describe different parts of the installation process.

When reviewing the anchor resin gel time specification, please use the following questions:

Require suppliers to distinguish these times from any requirements for tension, loading, or strength verification. The number of gel times should not be considered as an approval for the loading of installed bolts.

The listed minimum time is not sufficient to identify the correct ink cartridge. Compare the expected installation procedures and determine the conditions for each supplier's data.

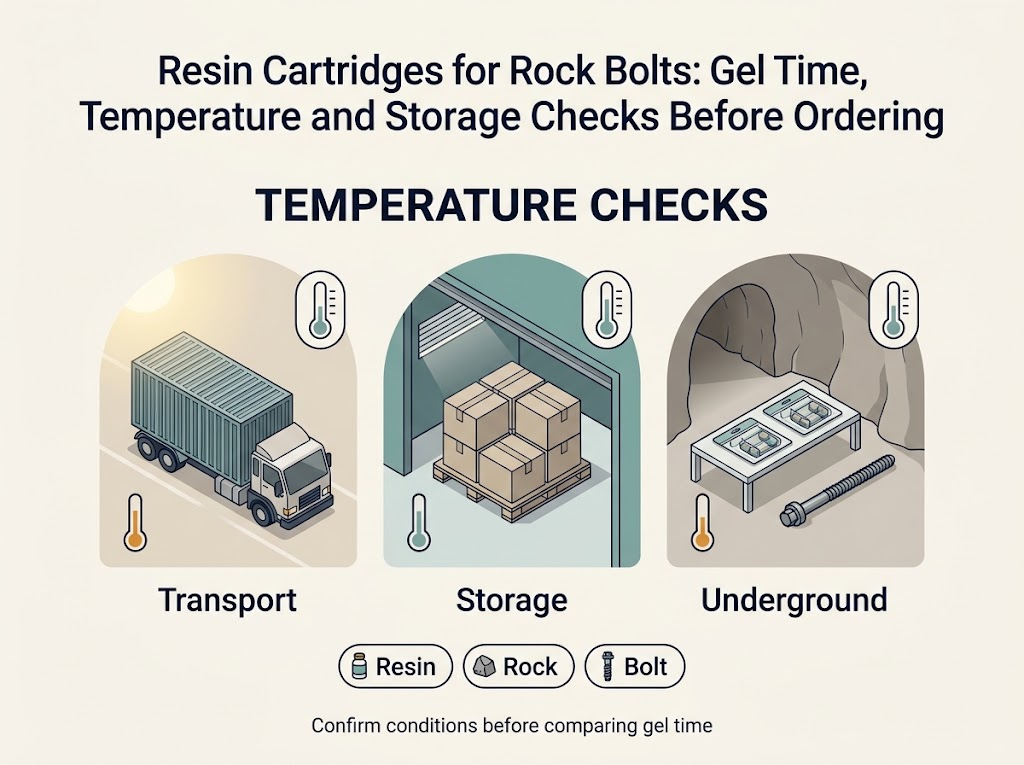

Provide temperature information from storage to installation

Which temperature should you enter in the inquiry: warehouse temperature, underground air temperature, or ammunition temperature?

Provide available information for each stage and inquire with suppliers about what their products must measure. JENNMAR believes that resin, formation and bolt temperature are factors that affect gel time. Its technical information also distinguishes between storage conditions and preparation for use. Therefore, it is impossible to determine important installation conditions solely based on warehouse readings.

The actual investigation should describe:

• Expected temperature during transportation and surface storage.
• Underground working temperature range.
• Available information on the temperature of rocks, anchor rods, and ammunition.
• How will the ink cartridge be moved from the storage area to the installation area.

Then asked, "Does the announcement time cover these conditions, or does it need further confirmation

Do not create temperature correction rules from a single directory value. If the conditions differ from the published data, please consult the manufacturer's instructions and reach an agreement with the responsible technical team on any on-site verification.

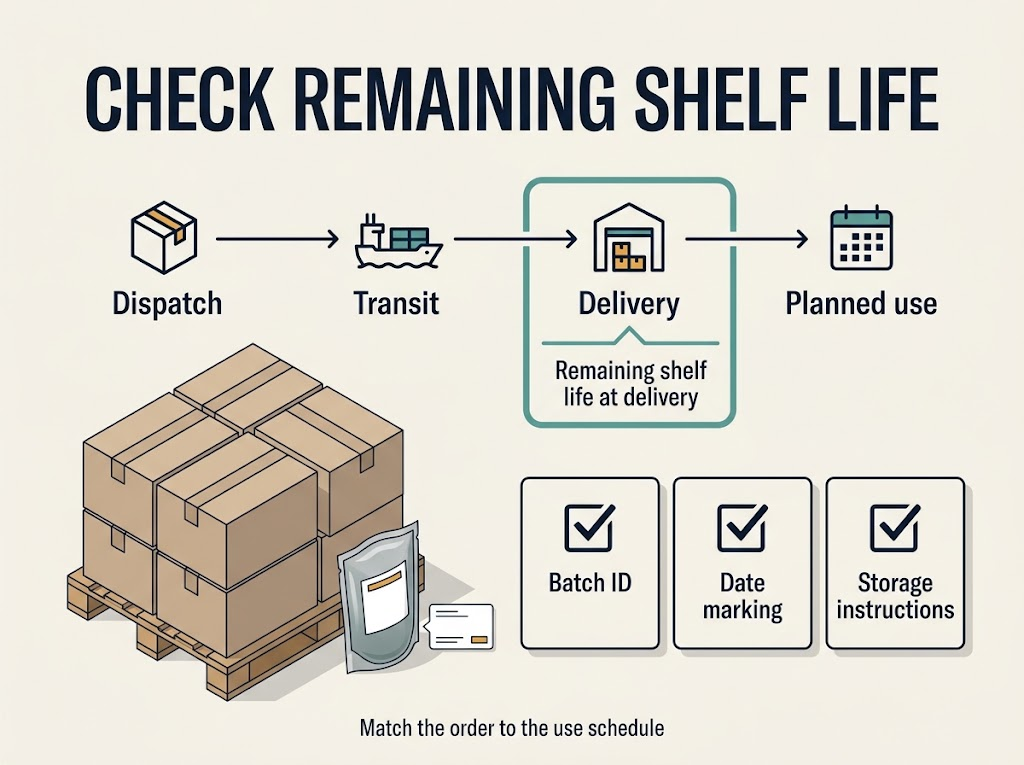

Compare the remaining shelf life of usage points

For export orders, the specified shelf life of resin boxes is only the beginning of procurement discussions. The buyer also needs to calculate the date, required storage conditions, and remaining time after transportation and customs clearance.

The manufacturer's documentation includes conditions in the warranty statement. Minova's Lokset Advance data sheet specifies the temperature for its shelf life declaration, while its A-series data sheet provides storage requirements and recommends inventory rotation. These are product specific instructions, so numbers from one resin family should not be applied to another.

Please confirm with the supplier:

• How to mark the production date, batch number, and expiration date or shelf life.
• Storage conditions related to the reported shelf life.
• The minimum remaining shelf life provided at the time of shipment and agreed upon delivery point.
• Information required to evaluate temperature deviation or packaging damage.

For the storage conditions of resin cylinders, it is required to provide the latest written instructions, rather than relying on descriptions such as "keep cool". In the discussion, actual storage arrangements were included: shaded warehouses, heat containers, and temporary on-site warehouses provided different evaluation environments for suppliers.

According to the expected installation schedule plan quantity. If the expiration dates of batches are different, organize outbound and inventory rotation so that materials can be used within their recorded range.

Request to provide documents identifying the quoted products

The general manual can introduce the resin series, but the procurement documents should specify the products provided. Request the following documents or confirm their availability:

When testing evidence, specify the questions it must answer. The laboratory resin results, batch quality records, and installation anchoring evaluation have different purposes. Require suppliers and project technical teams to determine the evidence required for the proposed application.

Sending inquiries that suppliers can accurately answer

Before requesting a quotation, prepare an inquiry package that can be sent to each shortlisted supplier. This makes missing information easier to identify and helps prevent quotes arranged for different products from being considered equivalent.

Suggested query text:

We are procuring resin barrels for anchor rods for mining or tunnel projects. Please refer to the attached bolt drawings, specified drilling diameters, and anchoring requirements.

>

Our expected installation temperature range is [range], and the available transportation and storage conditions are [detailed information]. The required quantity is [quantity], delivered to [location] before [date], and planned for use during [period].

>

Please determine the proposed ammunition name, size, and quantity for each bolt. Confirm the relevant gel, mixing and holding time information, including its test conditions, and list any other information required for the technical review.

>

Please also provide current technical and safety data sheets, storage instructions, detailed information on date markings, available batch records, and the minimum remaining shelf life provided at the agreed delivery point. List any exclusions or conditions in the quotation.

If you need to consult CQ Rockbolt, please send project specifications, bolt and drilling information, temperature conditions, quantity, and delivery schedule. Before finalizing the order, it is required to confirm the available resin anchoring products and their supporting documents. This provides a clear basis for both parties to discuss applicability, supply scope, and delivery requirements.
