Lattice Steel Beam
What is Lattice Steel Beam?
Lattice steel beam is a type of steel structural component applied in industrial and mining support, steel structure connection and engineering load-bearing scenarios. Designed with regular hole positions and a lattice beam body, it facilitates on-site positioning, assembly and bolt fastening. Customizable in length, cross-sectional dimensions, hole spacing, plate thickness, material and surface finishing based on project drawings or sample requirements, this product suits multiple working conditions including mine roadway support, industrial factory buildings, equipment support and temporary construction shoring. Featuring neat structure and flexible installation, it allows bulk transportation and centralized on-site construction, serving as a commonly used auxiliary load-bearing component in industrial and mining projects as well as steel structure works.
Product Overview
The lattice steel beam is a steel structural component designed for mining projects, tunnel support, steel structure connection, and equipment support applications. It features a long beam body with regularly arranged holes, making it convenient for on-site positioning, assembly, bolted connection, and fixing. The perforated lattice structure improves installation flexibility and is suitable for projects that require batch installation, fast assembly, or customized production based on engineering drawings.

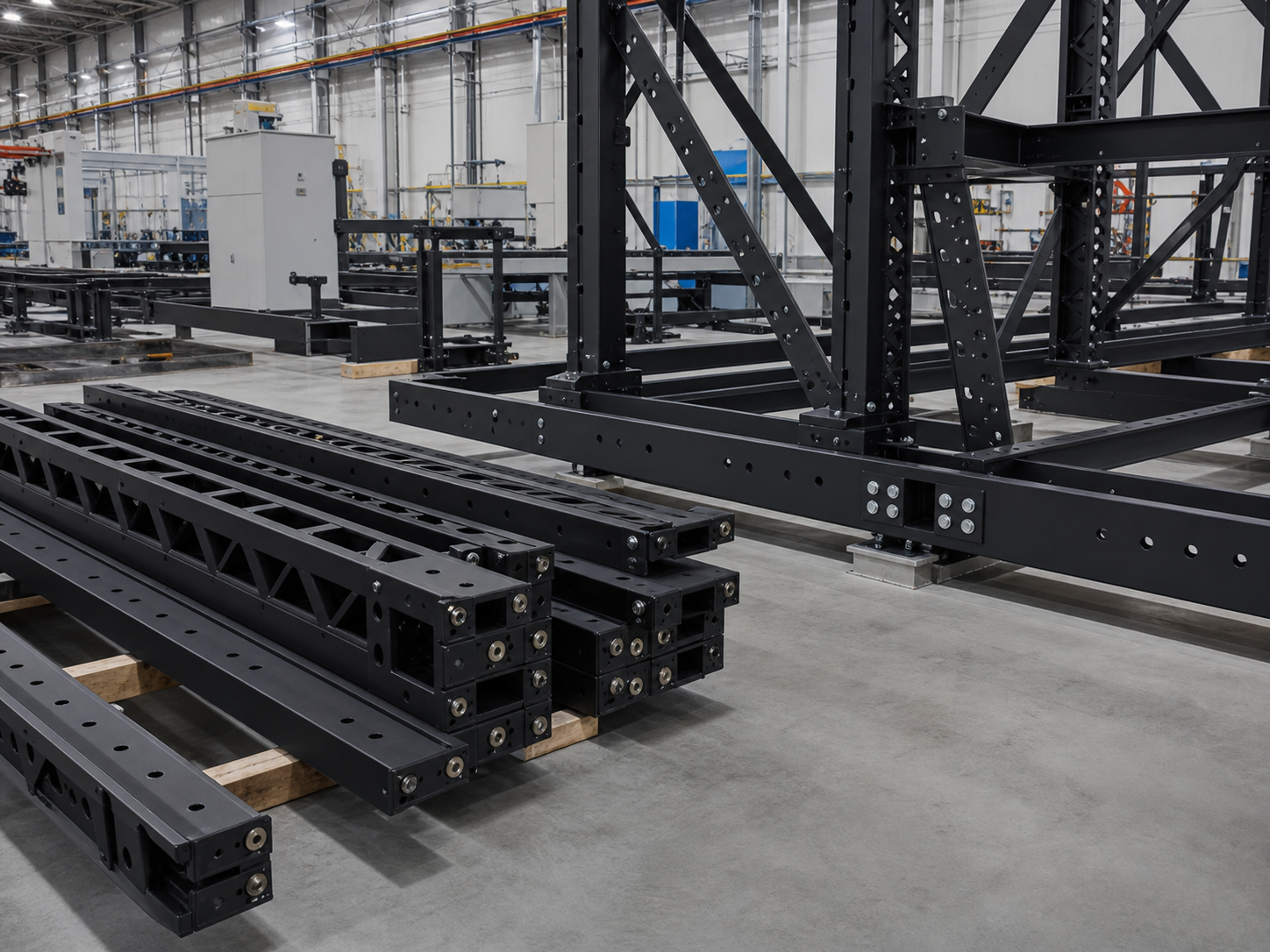

The beam has a neat appearance and a multi-cavity end structure, making it suitable for bundled packaging and centralized transportation. For mining, tunneling, industrial plants, construction support, equipment foundations, and other engineering projects, the appropriate specification can be selected according to load requirements, installation distance, connection method, and site conditions.
Product Features
- Regular hole design: Continuous holes on the beam body make bolted connection, position adjustment, and multi-point fixing easier.
- Lattice structure: Combines structural strength with installation convenience, suitable for fast on-site assembly.
- Suitable for batch projects: Unified specifications can be produced for easier storage, transportation, and installation management.
- Custom processing available: Length, hole spacing, section size, plate thickness, and surface treatment can be customized.
- Wide application range: Suitable for mining support, industrial structural parts, steel structure connection, equipment support, and engineering reinforcement.
 |  |
|---|
Specifications
| Item | Description |
|---|---|
| Product Name | Lattice Steel Beam |
| Product Category | Mining Structural Part / Support Steel Beam / Steel Structure Component |
| Common Material | Carbon steel, or customized according to project requirements |
| Structure | Perforated lattice steel beam |
| Surface Color | Black, surface treatment can be customized by order |
| Hole Design | Continuous regular holes for connection and installation adjustment |
| Length | Customized according to drawings or samples |
| Section Size | Customized according to load and installation requirements |

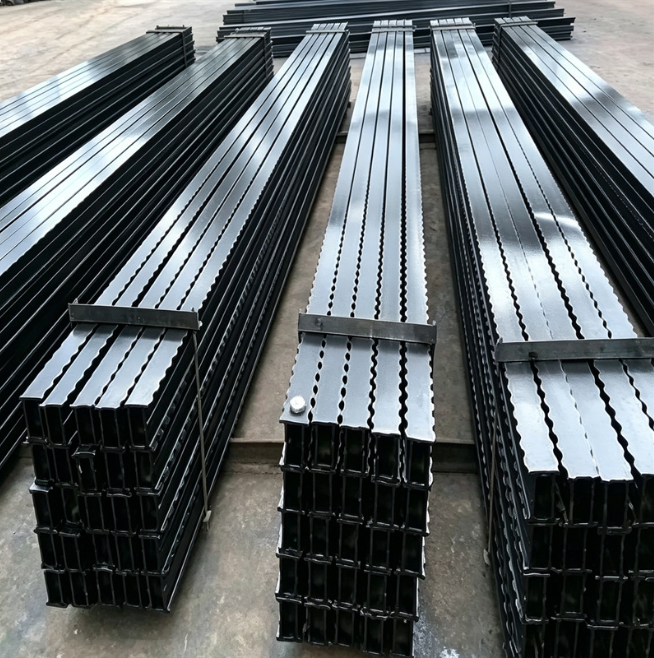

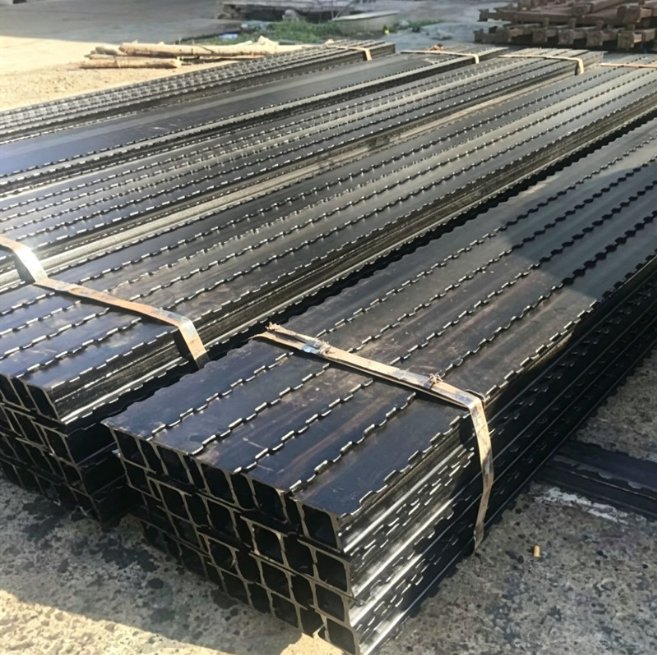

| Packaging | Bundled packaging for transportation and site storage |
| Applications | Mining tunnels, engineering support, steel structure connection, industrial equipment support, etc. |
Applications

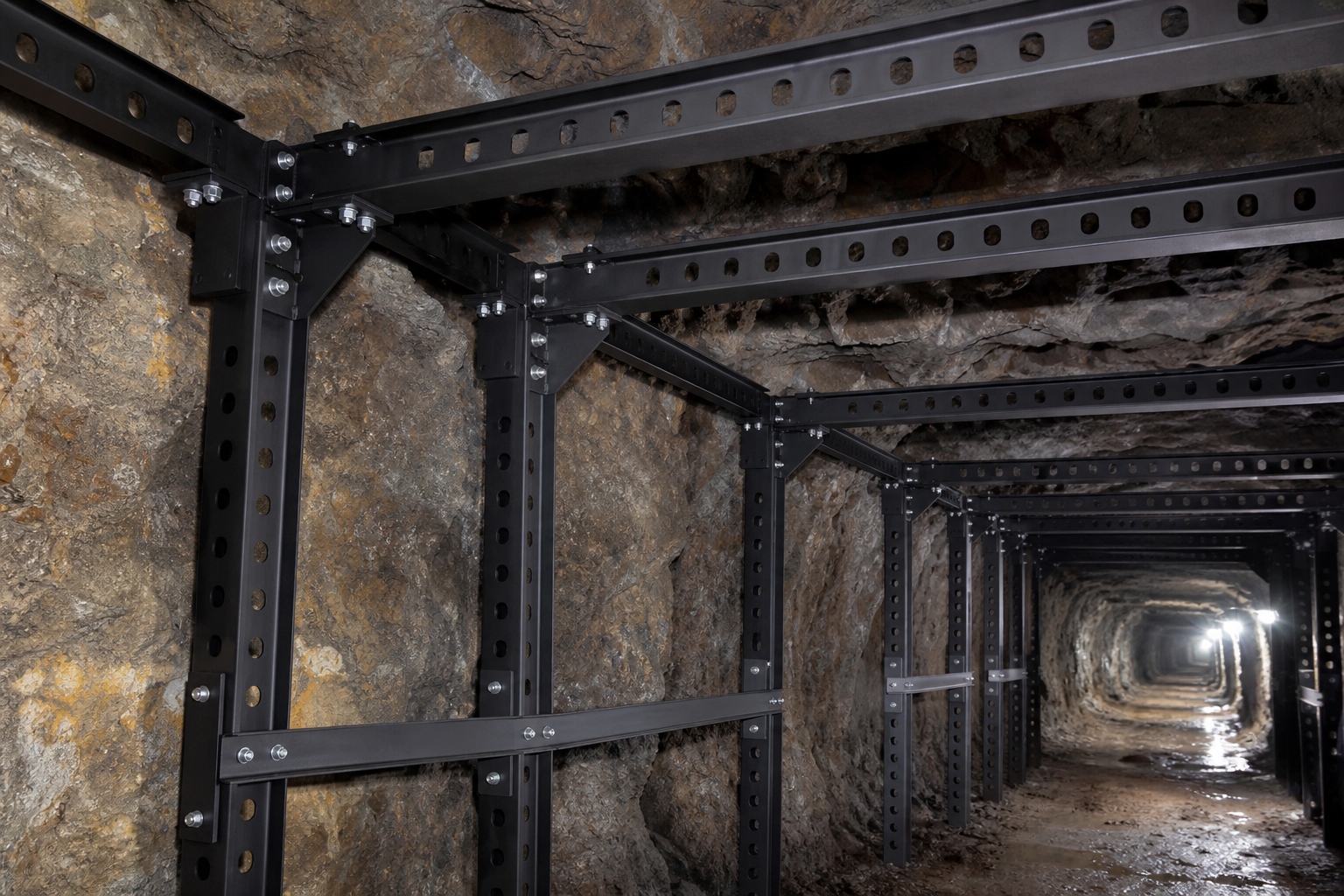

Lattice steel beams can be used in mining tunnel support systems, industrial support structures, steel structure connecting beams, equipment foundation support, temporary construction support, and industrial plant structural components. With regular hole positions, the product can be used together with connectors, brackets, and fasteners to meet different on-site requirements for positioning, splicing, and fixing.
For projects that require long-term load-bearing performance or special installation conditions, the material, thickness, hole spacing, and surface protection solution can be determined according to construction drawings, helping the beam better match the actual working environment.
 |  |
|---|
Customization and Purchasing Information
When purchasing lattice steel beams, buyers can provide length, width, height, plate thickness, hole diameter, hole spacing, material, surface treatment, quantity, and application scenario. If project drawings or samples are available, production can be arranged accordingly. For bulk orders, packaging, transportation, and delivery plans can also be arranged based on project needs to support a smoother installation schedule.
FAQ
Q1: Can the lattice steel beam be customized according to drawings?
Yes. The product can be processed according to drawings, samples, or project parameters. Common customization items include length, hole spacing, section size, and surface treatment.
Q2: Is this steel beam suitable for mining support applications?
Yes. It is suitable for mining support and structural connection applications. The specific specification should be selected according to the installation method, load requirements, and matching components.
Q3: Can the surface treatment be changed?
Yes. Spray coating, anti-rust treatment, or other surface treatment solutions can be selected according to the working environment.
Q4: How can I get an accurate quotation?
Please provide the size, quantity, material requirements, hole design requirements, and delivery location. This will help us provide a more accurate quotation and production plan.
Contact Us for a Custom Solution
If you are sourcing lattice steel beams, please contact us for a custom solution. We can help confirm the length, section size, hole spacing, plate thickness, material, surface treatment, packaging, and transportation plan according to your drawings, samples, or on-site installation requirements. Based on your purchase quantity and delivery requirements, we can also provide quotation support to help your mining support, steel structure connection, or equipment support project move forward more efficiently.
 |  |
|---|
