Precision Rolled Threaded Steel Anchor Bar

Product Overview

Precision rolled threaded steel anchor bar is a high-strength threaded rebar product used for engineering anchoring, support reinforcement, and prestressed connection. The bar features continuous threads along the surface and can be used with nuts, plates, couplers, and other accessories. It is suitable for tunnels, mines, slopes, bridges, foundation pits, water conservancy projects, and concrete structure reinforcement.

Compared with ordinary rebar, precision rolled threaded steel anchor bars are easier to tension, anchor, connect, and cut to length. They are ideal for engineering projects that require reliable load-bearing capacity, efficient installation, and flexible on-site application.

This product is available in multiple diameters and can be supplied according to project requirements, including cutting, accessory matching, and bulk delivery. It is suitable for construction contractors, engineering companies, building material distributors, and mining support buyers.

Key Features

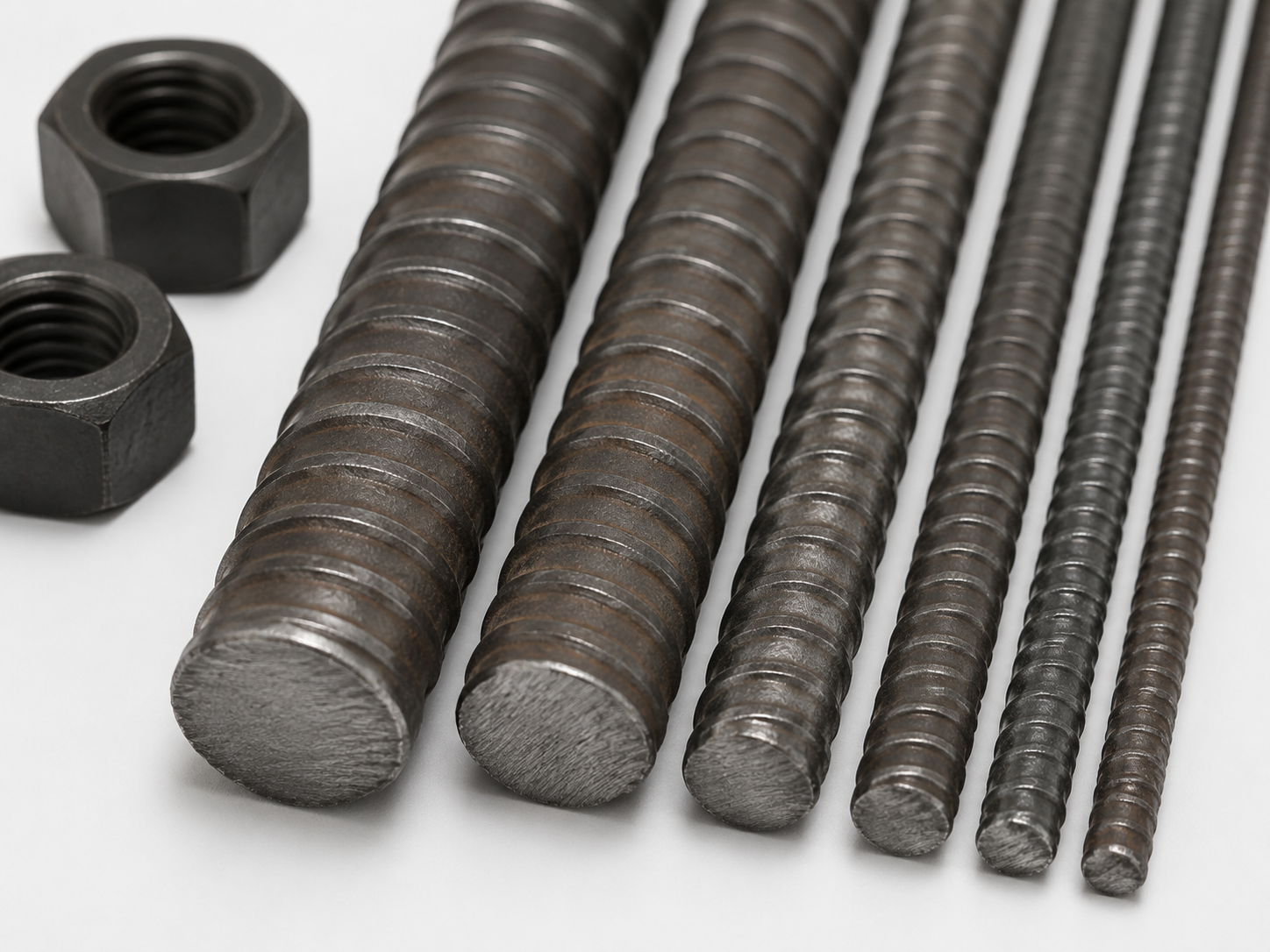

• Complete Size Range: Common diameters include 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 32mm, 36mm, and 40mm.
• Multiple Strength Grades: Available in PSB830, PSB930, and PSB1080 to meet different engineering load requirements.
• Continuous Thread Design: The threaded surface allows easy connection with nuts, couplers, and anchor plates.
• Cut-to-Length Service: Bars can be cut according to project length requirements.
• Suitable for Bulk Engineering Orders: Supports specification matching, accessory supply, loading, and delivery for construction projects.

Product Specifications

Applications

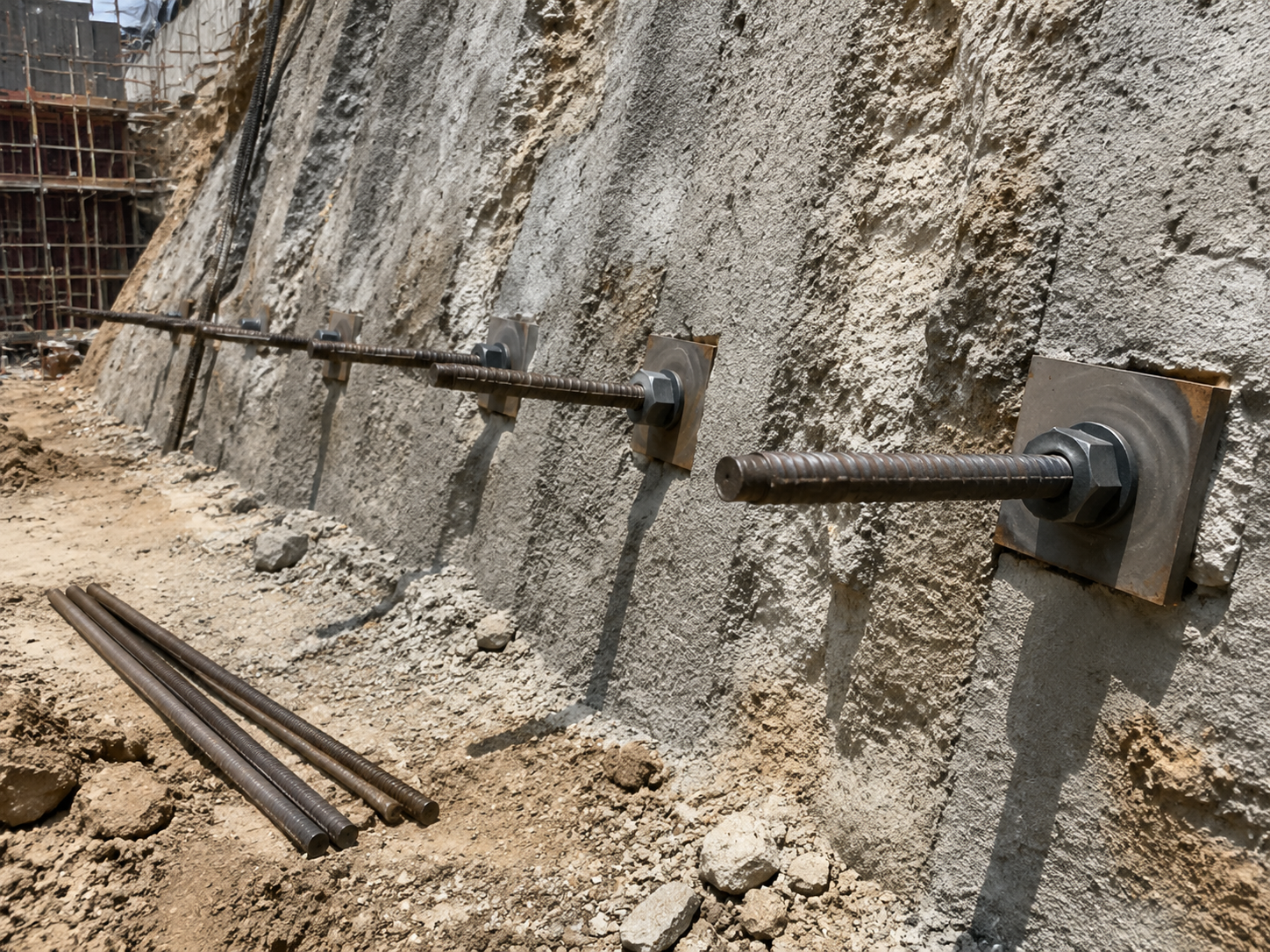

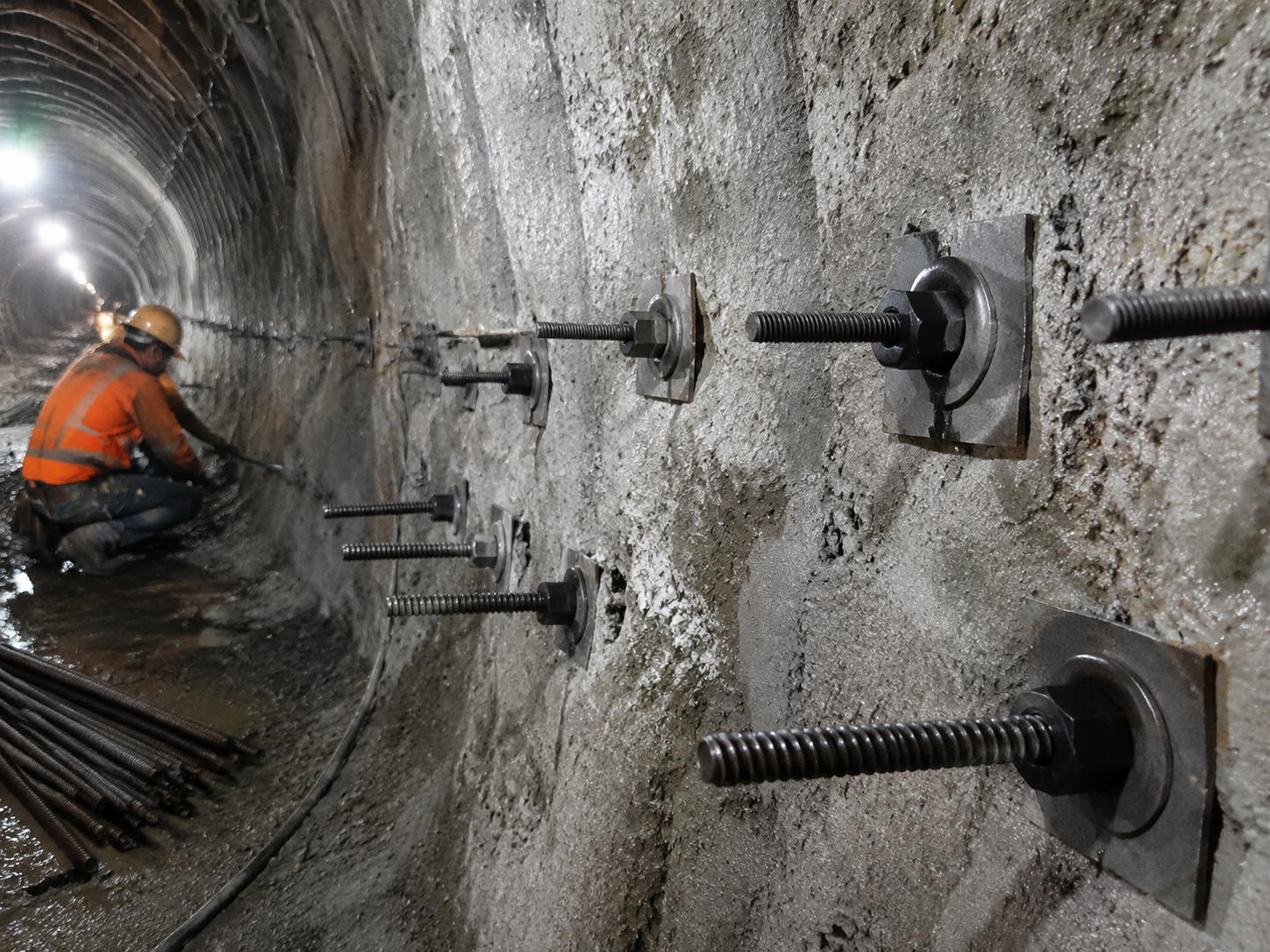

Precision rolled threaded steel anchor bars are widely used in engineering environments that require high-strength anchoring and structural support. In tunnel and mining construction, they can be used for surrounding rock support, roof reinforcement, and anchoring systems. In slope and foundation pit projects, they help improve soil stability and retaining support. In bridges, water conservancy projects, and large concrete structures, they can be used for prestressed connection, structural tying, and load-bearing reinforcement.

For projects requiring on-site cutting, quick installation, and multiple specification combinations, precision rolled threaded steel anchor bars provide strong construction adaptability.

Structure and Installation Features

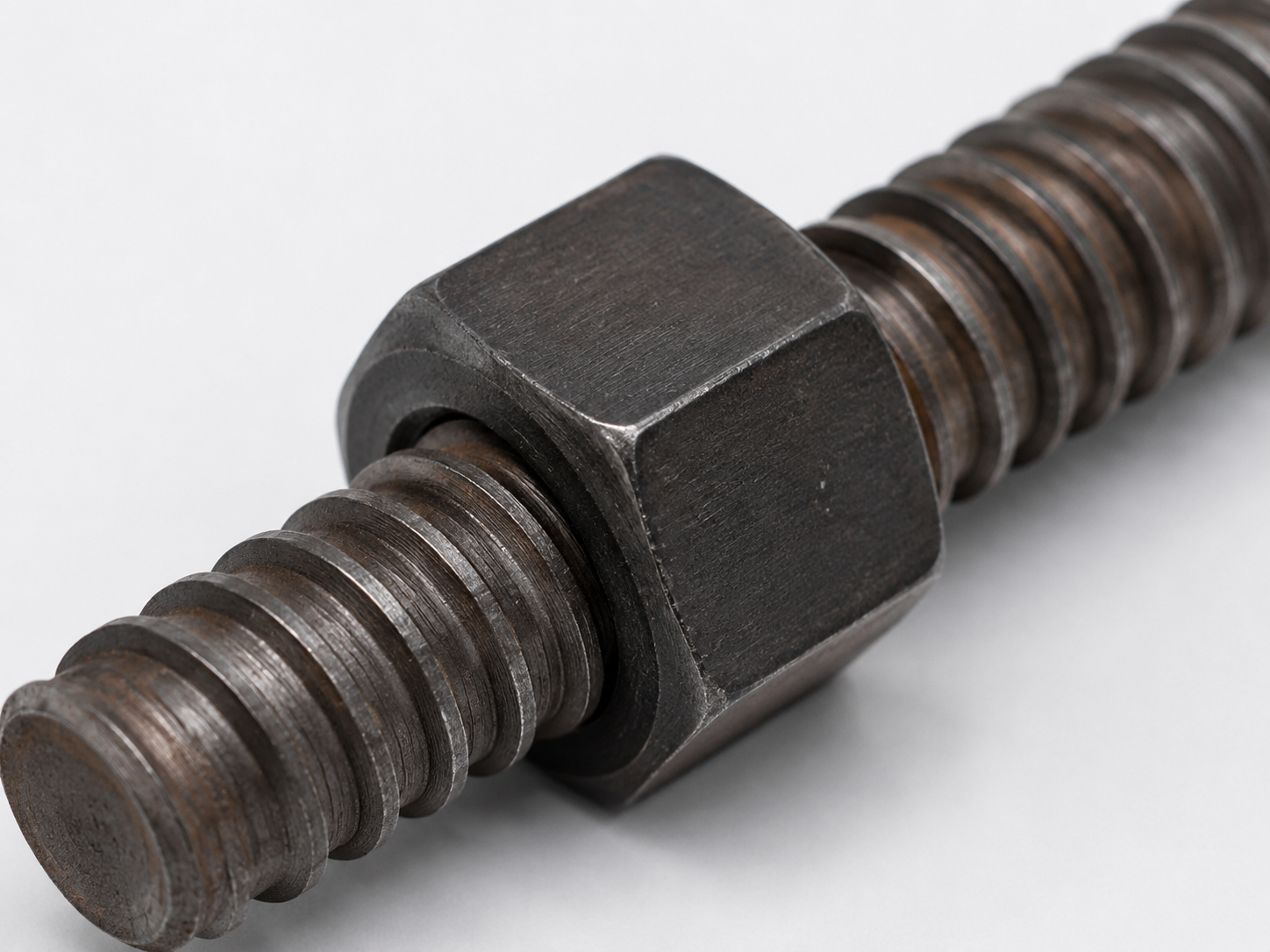

The product is made with a threaded rebar structure. The continuous threads along the bar allow nuts to be tightened and fixed at different positions. During construction, suitable diameters and strength grades can be selected according to anchoring depth, design tension, and site conditions. The bars can be used together with anchor plates, nuts, and couplers.

For long-distance connection or segmented transportation, couplers can be used to extend the bars, improving flexibility during on-site installation.

Precision rolled threaded steel anchor bars are suitable for procurement based on drawings, material lists, or engineering specifications. Buyers can provide diameter, length, strength grade, quantity, and accessory requirements for faster quotation and delivery arrangement.

Purchasing Tips

• Select the proper diameter and strength grade according to project design requirements.
• Provide the required length and quantity if cut-to-length service is needed.
• Confirm nut, plate, and coupler requirements together with the anchor bar specification.
• For bulk engineering procurement, provide a detailed specification list for accurate quotation.
• For tunnel, mining, bridge, and slope projects, specifications should be matched according to construction drawings or technical requirements.

FAQ

Q1: Can precision rolled threaded steel anchor bars be cut to specific lengths?
Yes. The bars can be cut to length according to project requirements, making them suitable for construction sites, replenishment orders, and different anchoring depths.

Q2: What are the common sizes available?
Common diameters include 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 32mm, 36mm, and 40mm. Other requirements can be discussed according to the actual purchase plan.

Q3: What is the difference between PSB830, PSB930, and PSB1080?
They refer to different strength grades and are used for different load-bearing requirements. The specific grade should be selected according to project drawings, standards, or construction plans.

Q4: Can nuts and anchor plates be supplied together?
Yes. Nuts, anchor plates, couplers, and related accessories can be supplied according to project requirements.

Q5: Who is this product suitable for?
It is suitable for construction companies, mining support projects, bridge and tunnel projects, slope and foundation pit projects, building material distributors, and long-term bulk buyers.

Get a Quote

To get a quotation for precision rolled threaded steel anchor bars, please provide the required diameter, length, strength grade, quantity, and whether cut-to-length service or accessories such as nuts, anchor plates, and couplers are needed. Common diameters include 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 32mm, 36mm, and 40mm. Available strength grades include PSB830, PSB930, and PSB1080.

For engineering project procurement, you may also provide the application scenario, delivery location, and required delivery time. This helps confirm stock availability, processing arrangements, loading method, and logistics plan. If you are not sure about the exact model, you can send drawings, a purchase list, or site requirements, and we will help match suitable specifications and provide a quotation.
