How Self-Drilling Anchor Bolts Achieve Active Rock Reinforcement?

Self-drilling anchor bolts (SDA bolts) can provide active rock reinforcement when they are installed, grouted, and then pre-tensioned using a bearing plate and nut system. The applied tension generates compressive forces within the surrounding rock mass, improving its stability before significant deformation occurs.

Self-drilling anchor bolts achieve active rock reinforcement by combining:

· Efficient drilling and installation in difficult ground conditions.

· Full-length grout bonding to the surrounding rock.

· Post-installation pre-tensioning that compresses and stabilizes the rock mass.

By applying support before significant movement occurs, pre-tensioned SDA systems improve excavation safety, reduce deformation, and enhance the long-term stability of tunnels, mines, and slopes.

Self-Drilling Anchor Bolts Active Rock Reinforcement Working Principle

1. Installation and Drilling

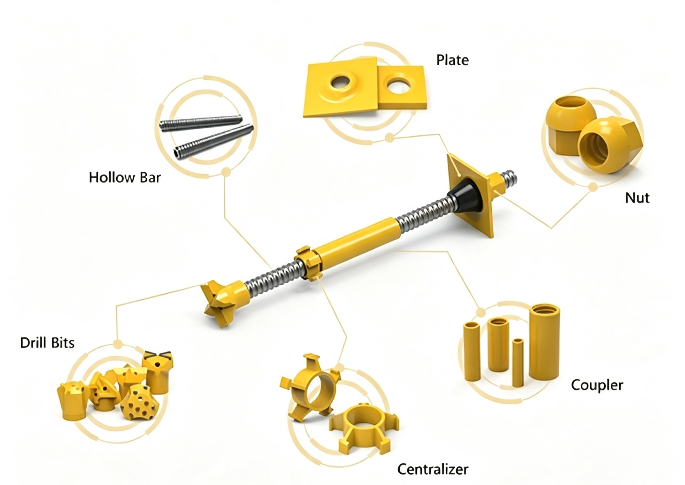

The hollow anchor bar serves as both the drill rod and the reinforcement element. A sacrificial drill bit is attached to the end, allowing the anchor to be drilled directly into the rock or soil.

2. Simultaneous Grouting

Cement grout is pumped through the hollow core of the bar and exits through openings in the drill bit, filling fractures, voids, and the annular space around the anchor.

· Bonds the anchor bar to the rock mass.

· Increases the shear strength of discontinuities.

· Protects the steel bar from corrosion.

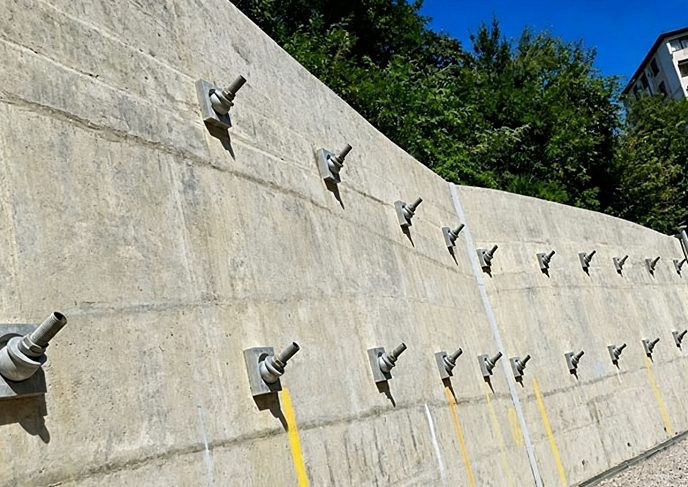

3. Application of Pre-Tension

After the grout has reached sufficient strength, a bearing plate and nut are tightened at the exposed end of the anchor.

· Applies a compressive force to the rock surface.

· Clamps fractured rock layers together.

· Increases friction along joints, bedding planes, and cracks.

· Restricts rock movement before instability develops.

This is what makes the system active reinforcement rather than purely passive support.

When a self-drilling anchor bolt is tensioned, it creates a reinforced rock zone around the excavation, reducing crack openings by compressing existing fractures, improving interlocking between rock blocks, transferring loads from weak zones into more competent rock, controlling deformation around tunnels, slopes, and underground excavations, and preventing progressive failure by mobilizing support before significant displacement occurs.

Typical Applications

1. Tunnel Support

In squeezing ground, fractured rock, or fault zones, pre-tensioned SDA bolts help maintain excavation stability immediately after installation.

2. Mining Excavations

Active reinforcement controls roof movement and wall deformation in underground mines, especially where stress redistribution occurs after excavation.

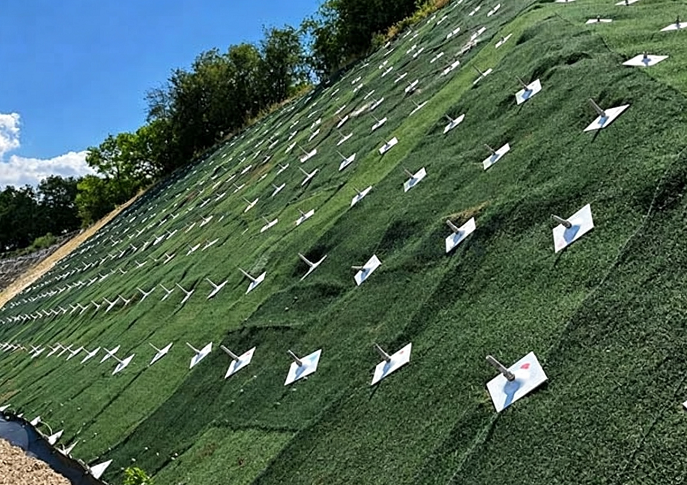

3. Slope Stabilization

Tensioned SDA anchors increase the stability of potentially unstable rock masses by improving resistance to sliding and toppling failures.

Other anchor bolt systems

Self-drilling anchor bolts are not automatically active reinforcement systems. The active behavior depends on the design and installation procedure, not solely on the anchor type itself. There are several other anchor bolt systems that can achieve active rock reinforcement when properly installed and pre-tensioned.

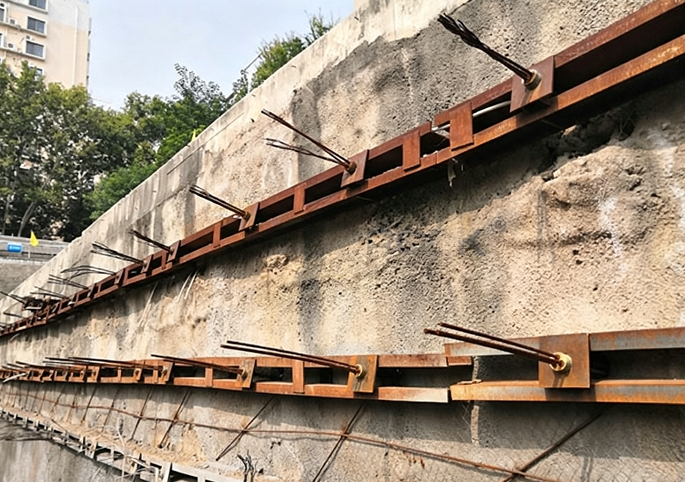

1. Cable Bolts

Long, flexible steel cables, typically 7–19 mm in diameter, that can extend several tens of meters into the ground, making them ideal for stabilizing large, unstable rock blocks and deep-seated rock layers.

Active Reinforcement Mechanism:

· Grouted along the cable length.

· Pre-tensioned at the surface using hydraulic jacks and bearing plates.

· Creates compressive forces that clamp rock masses and control large-scale movement.

Typical Uses:

· Stabilizing deep slopes.

· Supporting large tunnel excavations with high roof loads.

· Reinforcing weak, fractured rock zones.

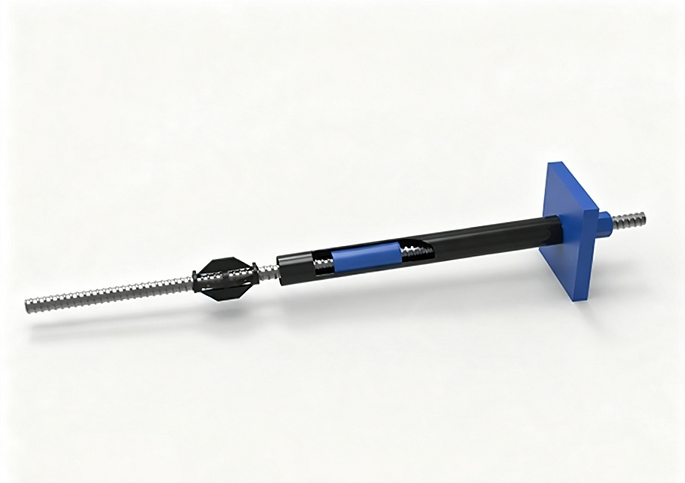

2. Fully Grouted Threaded Rods

Straight steel rods or bars, threaded along part or the full length, are installed into pre-drilled holes and bonded with grout to provide reliable ground reinforcement.

Active Reinforcement Mechanism:

· After grout cures, the rods are pre-tensioned using nuts and bearing plates.

· The tension compresses rock blocks and mobilizes the surrounding mass for immediate stabilization.

Typical Uses:

· Medium-depth tunnels.

· Rock face stabilization in open-pit mines.

· Supporting retaining walls in slopes.

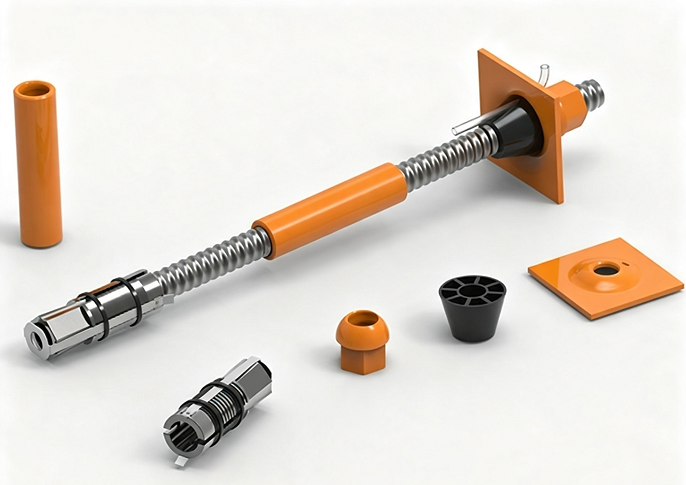

3. Mechanical Expansion Anchors

Anchors that expand mechanically within the rock hole

Active Reinforcement Mechanism:

· Some high-capacity mechanical anchors can be tensioned after installation.

· Less common for large-scale active reinforcement but useful for smaller unstable blocks.

Typical Uses:

· Rock faces with small blocks or slabs.

· Secondary support in combination with grouted bolts.

What makes any of these systems active is pre-tensioning after installation. Without tension, the same anchors act passively, only resisting rock movement as it happens.

Conclusion

Active rock reinforcement improves stability by applying pre-stress before significant deformation occurs. Each active reinforcement system has its strengths, with self-drilling anchor bolts providing particular advantages in challenging ground conditions where conventional installation methods may be difficult. The choice of anchor system should be based on ground conditions, load requirements, and project objectives.If you have any questions about self-drilling anchor bolts, please contact us. We will offer you satisfying answers and high-quality service.
